The Pyranometer Sensor is calibrated to measure the shortwave radiation reaching the Earth's surface, measured in Joules m-2 s-1 or Watts m-2.
Apogee's unique self-cleaning dome-shaped head prevents water accumulation. The sensor head is potted solid to prevent internal condensation in humid environments.
In addition to the standard SP-110 pyranometer, there are also 2 models available with amplified outputs up to 2.5 or 5V.
Output: Responsivity 0.200 mV per W m-2; In full sunlight 220 mV (1,100 W m-2)
Sensitivity: Custom calibrated to exactly 5.00 W m-2 per mV
Input power: None, self-powered
Operating environment: - 40 to 55 °C; 0 to 100% relative humidity. Designed for continuous outdoor use. Can be submerged under water (with or without mounting screw).
Materials: Anodized aluminum with acrylic lens
Cable: 3 m of shielded, twisted-pair wire with Santoprene casing, ending in pigtail leads. Additional cable available.
Dimensions: 2.4 cm diameter, 2.75 cm high; Mass 70 g (with 3 m lead wire)
Warranty: 1 year against defects in materials and workmanship
Specifications - SP-212 & SP-215
Cosine response: as above
Absolute accuracy: as above
Output: SP-212: 0 to 2.5 V (2.2 V = full sunlight 1,100 W m-2); Custom calibrated to exactly 0.50 W m-2 per mV
SP-215: 0 to 5 V (4.4 V = full sunlight 1,100 W m-2); Custom calibrated to exactly 0.25 W m-2/ mV
Input power: SP-212: 2.5 to 5.5 VDC; SP-215: 5 to 5.5 VDC

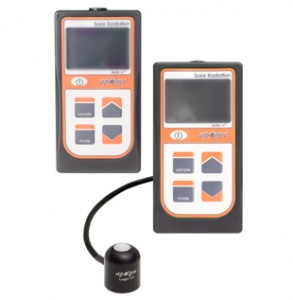

Pyranometer Meters - MP-100 & MP-200
For portable monitoring, Apogee now have two meters for measuring solar irradiance. MP-100 includes and integral sensor, while MP-200 has a seperate sensor on cable.
A leveling base AL-100 is required for mounting light sensors.
