The Apogee cosine-corrected head provides NIST-traceable spectroradiometric measurements of photosynthetic photon flux in µmol m-2 s-1, irradiance in W m-2, and illuminance in LUX. Can be purchased with or without a configured sub-notebook laptop.

Model SPEC-PAR/NIR

Wavelength range: 350 to 1000 nm
Suggested uses:
- spectral reflectance imaging
- phytochrome photoequilibria
- yield photon flux

Model SPEC-UV/PAR

Wavelength range: 300 to 850 nm
Suggested uses:
- above photobiology functions
- measurement of shorter UV wavelengths

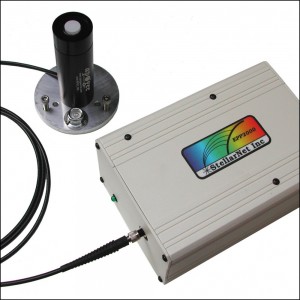

Both Models Include

• Calibration to an NIST-traceable lamp

• Cosine corrected head with leveling plate

• Two meters of fiber optic cable

• Rechargeable battery package

• USB2 cable for connection to laptop

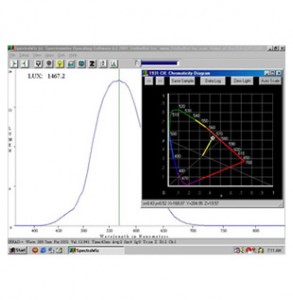

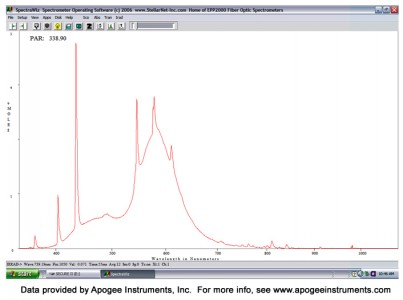

• Custom software

Specificiations

• Detector: 2048 pixel 14 µm x 200 µm microelement array

• Dynamic Range: 1 to 4096 counts (± 0.5%)

• Signal to noise ratio(S/N): Up to 1000:1

• Linear Range: 0 - 2.1 absorbance units (< 0.5%)

• Exposure Range: 4 milliseconds to 60 seconds (synoptic multi-channel)

• Power Requirements: 220-250 milliamps at +5 volts DC (provided)

• Optical Cable: 2 meters armored cable with a 400 µm diameter fiber optic. Cables for Model SPEC-UV/PAR are UV-resistant, and cables for Model SPEC-PAR/NIR have low OH content to minimize infrared attenuation.

• Wavelength Accuracy: < 0.25 nm

• Wavelength Repeatablity: < 0.05 nm

• Wavelength Stability: < 0.001 nm per °C

• Base Unit Size: Model SPEC-UV/PAR: 15.5 cm x 11 cm x 8 cm; Model SPEC-PAR/NIR: 15.5 cm x 9.5 cm x 4 cm

• Base Unit Mass: Model SPEC-UV/PAR: 900 g; Model SPEC-PAR/NIR: 500 g
