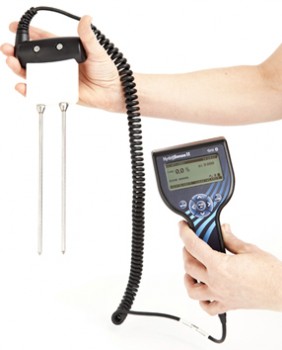

The HydroSense System combines a compact, handheld display and a sophisticated soil water sensing probe in a portable package to provide quick and reliable soil water content measurements.
Each measurement takes less than one second and is obtained by inserting the probe rods into the soil and pressing a single button on the display unit. A choice of 12- or 20-cm long probe rods makes HydroSense a versatile tool for monitoring and managing soil water in a wide range of conditions.

Features

• The HydroSense is a portable water content system comprised of:

  • CD620 Hydrosensense Display

  • CS620 Water Content Sensor

• Two probe rods 12 or 20 cm in length

  • Uses time-domain reflectometry measurement technique

  • Designed for making attended measurements

  • Extra rods are available for replacement or varied depth measurement

Specifications

• CD620 HydroSense Display Unit

  • Measurement Parameter: Volumetric Water Content (%), Water Deficit (mm)

  • Display: 16-character, two line LCD display

  • Keypad: Two-button membrane keypad

  • Dimensions: 120 x 73 x 24 mm

  • Weight: 160 grams (7 oz)

  • Reading time: <50 milliseconds

• CS620 Water Content Probe

  • Accuracy: ±3% water content

  • Resolution: 0.25%

  • Range: Dry to saturation

  • Body Dimensions: 105 x 70 x 18 mm

  • Rod Diameter: 5 mm

  • Spacing: 32 mm

  • Rod Length: 120 or 200 mm

  • Weight: 390 grams (14 oz)
