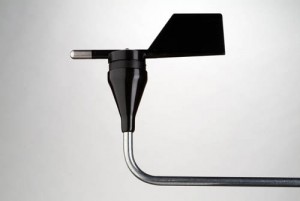

NRG 200P Wind Direction Vane


The NRG #200P continuous rotation potentiometric wind direction vane is a robust low cost wind vane suitable for a multitude of applications.

The thermoplastic and stainless steel components resist corrosion and contribute to a high strength-to-weight ratio. The vane is directly connected to a precision conductive plastic potentiometer located in the main body. An analog voltage output directly proportional to the wind direction is produced when a constant DC excitation voltage is applied to the potentiometer. A rubber terminal boot is included. Suitable for use in wind resource assessment, meteorological studies and environmental monitoring.

Key Specifications

  • Sensor range: 360° mechanical, continuous rotation
  • Output Signal: Analog DC voltage from conductive plastic potentiometer, 10K ohms
  • Transfer function: Output signal is a ratiometric voltage
  • Accuracy: Potentiometer linearity within 1%
  • Dead band: 8° Maximum, 4° Typical
  • Output signal range: 0 V to excitation voltage (excluding deadband)
  • Supply voltage: Regulated potentiometer excitation of 1 V to 15 V DC
