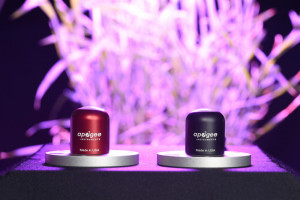

Both sensors have outputs to calculate critical ratios for plant studies and growing operations. They are suitable for all growing enviroments including under LED lights.

PAR-FAR

In addition to PPFD, red and far-red wavelengths are of particular interest because they influence photosynthetic and morphogenic activity. Phytochrome pigments sensitive to varying ratios of red and far-red light provide information to the plant about its light environment and, therefore, its optimal growth patterns. Increasing the fraction of red light indicates less shading and generally results in more conservative vertical growth patterns; increasing the far-red fraction indicates more shading and results in more aggressive vertical growth patterns.

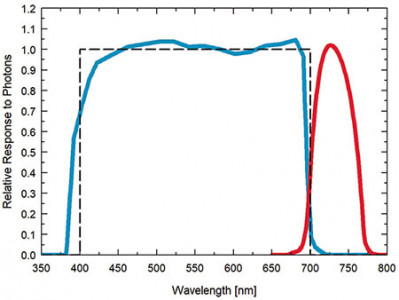

• Spectral response: 389 to 692 nm ± 5 nm (PAR) and 702 to 761 nm ± 5 nm (Far-red)
• Output options:S2-141-SS: 0 to 40 mV (PAR) and 0 to 20 mV (Far-red);S2-441-SS: SDI-12;2-442-SS: ModBus
• Measurement repeatability: <1%
• Field of View 180°
• IP Rating:IP68

Red and far-red wavelengths are of particular interest because they influence photosynthetic and morphogenic activity. Phytochrome pigments sensitive to varying ratios of red and far-red light provide information to the plant about its light environment and, therefore, its optimal growth patterns. Increasing the fraction of red light indicates less shading and generally results in more conservative vertical growth patterns; increasing the far-red fraction indicates more shading and results in more aggressive vertical growth patterns.

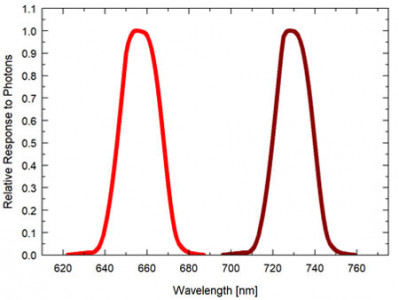

Red - far-red sensors are designed to approximate phytochrome spectral sensitivity. Quantifying the amount of red and far-red light incident on the sensor is important in determining the red / far-red ratio (red / far-red) and the far-red fraction (far-red / red + far-red).
