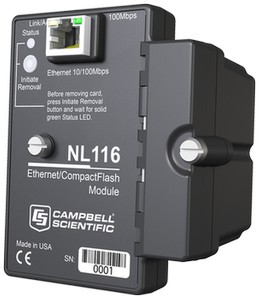

NL116 & NL121 Ethernet Interface

The NL116 & NL121 are ethernet interface devices that can be plugged into the peripheral port on the CR1000 and CR3000 dataloggers. The NL116 also includes a CompactFlash module.

They allow a Campbell CR1000 or CR3000 datalogger to communicate with a computer using TCP/IP, making it possible to communicate over a local area network. These devices connect directly to the 40-pin peripheral port on a CR1000 or CR3000 datalogger.

The NL116/CF card combination can also be used to expand the datalogger’s memory, transport data/programs from field site to the office, and store JPEG images when a digital camera is connected to the datalogger. You can retrieve data stored on the CompactFlash card through a communications link with the datalogger or by removing the card and carrying it to a computer. The computer can read the CompactFlash card either with the computer’s PCMCIA slot and the CF1 adapter or the computer’s USB port and the ImageMate Reader/Writer.

The NL116 & NL121 replace the NL115 & NL120 respectively. These older models will be available for a limited time until parts run out.



Features

  • Connects to the 40-pin peripheral port on a CR1000 or CR3000 datalogger
  • Communicates over a local area network or dedicated Internet via TCP/IP
  • NL116 can store data on a removable CompactFlash card (industrial-grade cards required, purchased separately) up to 64GB capacity
  • Integrated protection for surge and ESD



Specifications

  • Ethernet: 10/100 Mbps, auto-detect 10BaseT/100Base-TX, full/half duplex, IEEE 802.3, auto MDI/MDI-X
  • Power: 12 V supplied through the datalogger’s peripheral port
  • Current Drain: 58 mA typical, 3 mA Ethernet off
  • Temperature Range: -40° to +70°C standard, -40° to +85°C extended
  • Dimensions: 10.2 x 8.9 x 6.4 cm
