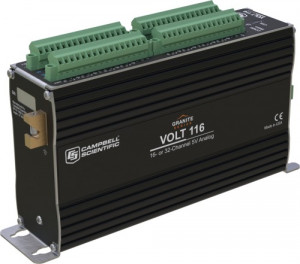

GRANITE VOLT 116 & VOLT 108 5V Analogue Input Modules

The GRANITE VOLT 116 & VOLT 108 are analog input modules that allow you to easily expand your Campbell Scientific data acquisition system.

The VOLT 116 has 16 differential or 32 single-ended input channels and four excitation channels while the VOLT 108 has 8 differential or 16 single-ended input channels.

They features a 24-bit, analog-to-digital converter and a low-noise, analog front-end to provide superior analog measurements. This module also supports period average measurements and includes both current and voltage excitation channels.

They both provide 2 x excitation channels, a 12 V and a switched 12 V port for powering peripherals and two switched 5 V ports for peripheral control.

All new units come with a calibration certificate.


All GRANITE modules are compatible with the CR6, CR100X & GRANITE dataloggers without any additional hardware. To use them with a CR1000, CR800, CR850, or CR3000 datalogger, a SC-CPI (datalogger-to-CPI interface) must also be used.


Key Specifications:

  • Estimated Accuracy:

                 ±(0.04% of reading + offset) 0° to 40°C
                 ±(0.06% of reading + offset) -40° to +70°C
                 ±(0.08% of reading + offset) -55° to +85°C

  • Power Requirements: 9.6 to 32 Vdc voltage
  • Operating Temperature:-40° to +70°C (standard);-55° to +85°C (extended)
  • Dimensions: 20.3 x 12.7 x 5.1 cm
  • Typical Current Drain: Sleep <1 mA; Active 1 Hz Scan 2 mA (estimated for one single-ended measurement)
  • Voltage Excitation: ±5 V (@ 50 mA)
  • Current Excitation: ±2.5 mA (±5 V compliance voltage)
