SF-L, Improved Granier sensor with four needles and a much higher accuracy
SF-L, Improved Granier sensor with four needles and a much higher accuracy

Sap Flow Sensors


Plant Growth

Sap Flow sensors measure the continuous rate of water uptake in trees. They consist of at least two temperature sensors, inserted into the tree one above the other



SF-G Granier Type 2-Needle Sensor

This sensor uses the standard Granier method to caclulate sap flow. It can be used for any tree diameter >2cm.



SF-L Improved 4-Needle sensor

The standard 2-needle sensor can have temperature inaccuracies due to temperature gradients within the sap-wood. The SF-L sensor has 2 additional sensors which measures and accounts for these variations.  Resulting sap flow measurements are significantly more accurate and the important reference point of zero sap flow (ΔTmax) remains stable over long periods. When used in conjunction with dendrometer readings extremely accurate day & night time determinations can be made.

This sensor is not suitable for tree diameters <8cm and requires 3 x differential datalogger channels.



About Ecomatik

Ecomatik have been manufacturing precision instruments to monitor plant growth and water use for over 20 years.
Based in Germany, they supply researchers in over 60 countries through a network of approved distributors.



Request information about this product


What would you like to know?
Prices/Costs   How to Buy   Any other questions/comments:
Your Name:


Your Email Address: Required

(Note. This is only be used for a reply)
Your Phone Number: Required
Your Location/City: Required
Your Country: Required

We will get back to you as soon as possible.

Download full Ecomatik 2020 Catalogue


File Size 2.10MB   Filename ecomatik_catalog_en_2020_online_version.pdf   Download

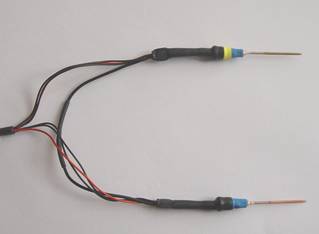

SF-G, Typical Granier sensor with two needles

SF-G, Typical Granier sensor with two needles
